MCP server

HeliosLogs includes a Model Context Protocol server, exposing the same tool catalog the built-in agent uses to any MCP client — Claude Desktop, Claude Code, Cursor, and others. Point a client at HeliosLogs and your assistant can search and analyze your logs directly.

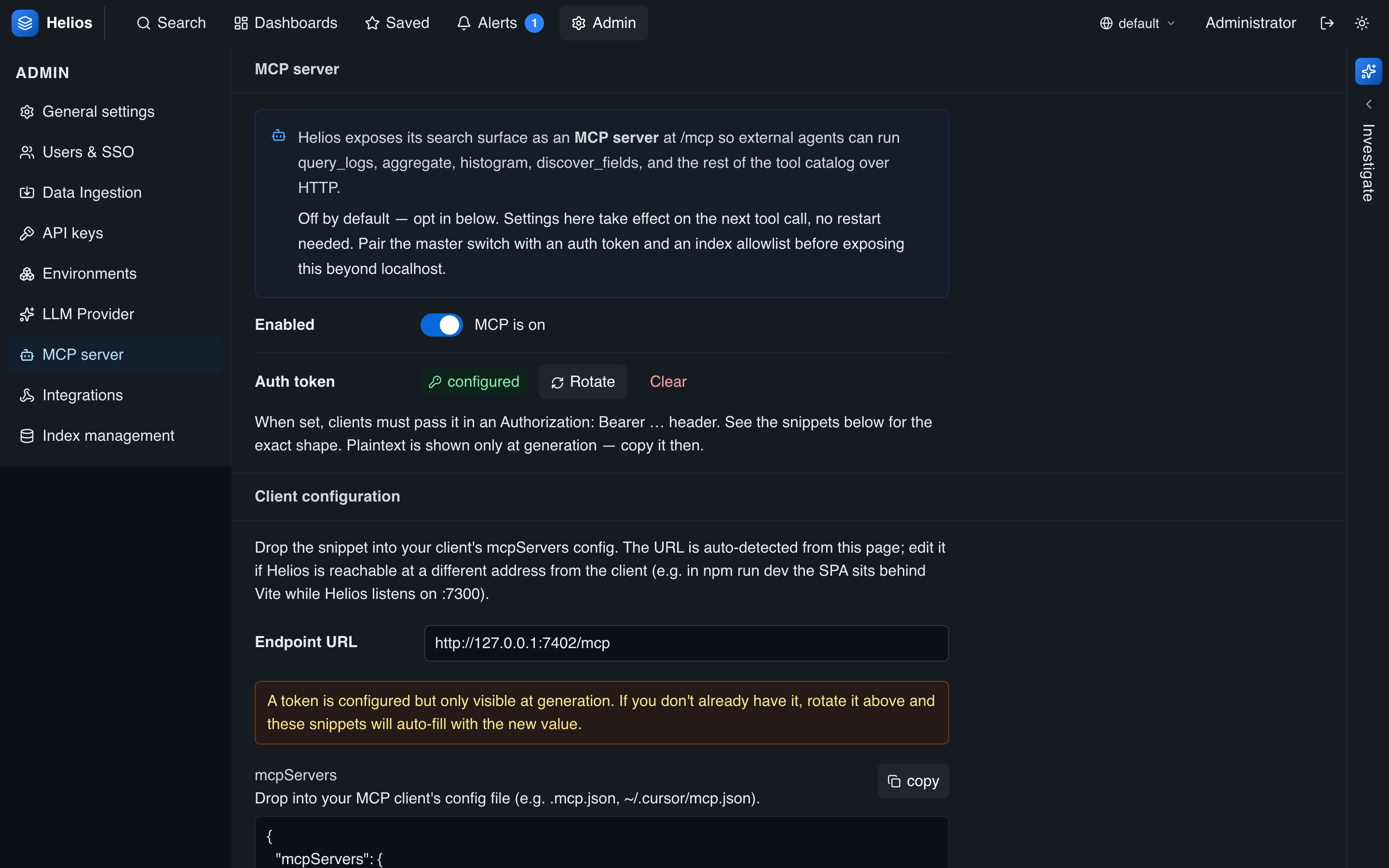

Configure it under Admin → MCP:

Endpoint

POST /mcp        # JSON-RPC 2.0 over HTTP

The endpoint is off by default — opt in with the master switch. There's no restart: settings take effect on the next tool call.

Scoping access

MCP exposes the same powerful toolset as the built-in agent, but to external clients that aren't tied to a logged-in user. Scope it deliberately, in four layers — each narrows what a connected assistant can see or do:

Control	Notes
Enabled	Master switch. When off, tools/list is empty and every call errors — the safe default.
Auth token	Bearer token clients send as Authorization: Bearer <token>. Generate or rotate it (shown once, at generation — copy it then), or clear it. With a token set, calls without it get 401. Leave it unset only for trusted local-only use.
Index allowlist	Restricts which environments and indexes MCP can read. Empty = unrestricted (everything the server holds).
Tool allowlist	Which tools are exposed. * (default) = all; otherwise only the listed tools appear in tools/list, and any other call is rejected.

Index & environment allowlist

The allowlist is a list of (environment, indexes) entries — the same shape as a non-admin user's RBAC allowlist:

• Empty list — unrestricted: MCP can reach every environment and index.
• An environment with no indexes — all indexes in that environment.
• An environment with specific indexes — only those indexes, in that environment.

The restriction is applied at the catalog layer, so it's transparent and total: list_environments returns only permitted environments, list_indexes only permitted indexes, and query_logs / histogram / aggregate can only ever touch partitions in the allowlist. A client can't read — or even enumerate — anything outside it. To grant a read-only assistant access to just your app logs in production, allow prod → [apache_access, python_app] and nothing else.

Tool allowlist

The catalog mixes read tools with write tools (ingest_events, create_dashboard, update_dashboard, create_monitor, update_monitor, acknowledge_alert). For a read-only surface, enable only the read tools and leave the write ones off — disabled tools never appear in tools/list and are rejected even if a client calls them by name.

Scope it before exposing

With the write tools enabled, MCP can modify dashboards and monitors and ingest data — not just read. Before connecting external clients, especially over the network: set an auth token, restrict the index allowlist to what the assistant needs, and trim the tool allowlist to the read tools unless writes are required. See Security hardening.

Tool catalog

Tool	What it does
list_indexes	List the indexes in the catalog.
list_environments	List the environments the allowlist permits.
list_partitions	Per-(index, day) document counts and on-disk size.
get_stats	Catalog rollup: documents, segments, partitions.
get_index_info	Schema and counts for one partition or the whole catalog.
discover_fields	Sample events and rank the JSON fields present.
query_logs	Search events; supports pipe operators for analytics.
histogram	Event counts over time — spot incidents and ingest gaps.
aggregate	Top values for a field (terms aggregation).
ingest_events	Bulk-ingest JSON events into a partition.
list_dashboards	List dashboards visible to MCP.
get_dashboard	Fetch one dashboard's full widget/layout spec.
create_dashboard	Create a (public) dashboard.
update_dashboard	Edit a public dashboard's name or widgets.
list_alerts	List alerts visible to MCP.
acknowledge_alert	Acknowledge an alert (clears it from every inbox).
list_monitors	List monitors visible to MCP.
create_monitor	Create a (public) recurring AI or threshold monitor.
update_monitor	Edit a public monitor's schedule, prompt, threshold, or enabled state.

The read tools accept the same query language and time arguments as the search API (q, index, start/end as ISO 8601, unix ms, or relative like -15m).

Connecting a client

The MCP admin panel generates ready-to-paste snippets. The standard mcpServers configuration (Claude Desktop, Cursor, …):

{
  "mcpServers": {
    "helios": {
      "type": "http",
      "url": "https://helios.example.com/mcp",
      "headers": {
        "Authorization": "Bearer <token>"
      }
    }
  }
}

(Omit headers if no auth token is configured.) For Claude Code, add it as an HTTP MCP server pointing at the same /mcp URL with the same header.

Smoke-test the endpoint with curl:

curl -X POST https://helios.example.com/mcp \
  -H 'content-type: application/json' \
  -H 'Authorization: Bearer <token>' \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/list"}'

Observing MCP activity

Every MCP tool call is recorded in the _heliosmcp self-log (tool, status, duration, arguments). The MCP admin panel shows recent calls, and you can query the full history in the _system environment — handy for seeing what your assistants are actually doing.
